Description



A Barcode control is used to place a barcode on a page. It can be used for web pages or for printed pages (see Designing Print Pages). A large number of different barcode types are supported – see the Preview of supported barcodes.

Properties

See also control common properties and local/inherited control properties.

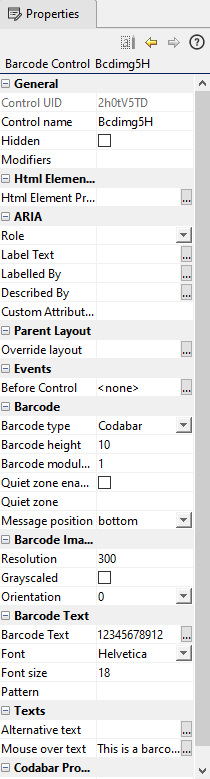

Barcode Control Properties









Barcode Tab

Property

Description

Name1

Type1

Get1

Set1

Barcode type

Specifies the type/style of the barcode.



The type is a static integer value that can be accessed through the BarcodeControl API. e.g BarcodeControl.CODABAR



type

Integer

Yes

Yes

Barcode height

Specifies the height of the barcode

barcodeHeight

Character

Yes

Yes

Barcode module width

Specifies the width of the barcode

moduleWidth

Character

Yes

Yes

Quiet zone enabled

 Indicates whether to add white space around the barcode. This is specified by the Quiet Zone and Quiet Zone Height (where applicable) properties.

quietZoneEnabled

Boolean

Yes

Yes

Quiet zone

Specifies the width of the quiet zone  either side of the barcode in mm

quietZone

Character

Yes

Yes

Message position

Specifies the position of the barcode text.



This can be configured as either:



  • top -  positions the text at the top of the barcode
  • bottom - positions the text at the bottom of the barcode
  • none -  no text is displayed



messagePosition

Character

Yes

Yes



Barcode Image

Property

Description

Name1

Type1

Get1

Set1

Resolution

Specifies the DPI resolution of the barcode

imageResolution

Character

Yes

Yes

Grayscaled

Indicates whether the barcode is rendered as gray scaled and anti-aliasing.

imageGrayScaled

Boolean

Yes

Yes

Orientation

Specifies the how the image is rendered on the screen. The value is specified in degrees. Typically the value should be set to 0, 90, 180 or 270.

Orientation

Integer

Yes

Yes



Barcode Text

Property

Description

Name1

Type1

Get1

Set1

Barcode Text

Properties for the barcode text. See text properties.

message

Character

Yes

Yes

Font Name

Specifies the font name for the human readable part of the barcode

fontName

Character

Yes

Yes

Font size

Specifies the font size for the human readable part of the barcode

fontSize

Integer

Yes

Yes

Barcode Text

Configure pattern text for the human readable part of the barcode

Pattern

Character

Yes

Yes



Codabar Properties

Property

Description

Name1

Type1

Get1

Set1

Wide factor

Specifies the factor by which the wide bars are broader than the narrow bars

barcodeWideFactor

Character

Yes

Yes



Code 39 Properties

Property

Description

Name1

Type1

Get1

Set1

Checksum

Specifies the checksum mode. The value can be set as:



  • auto - chooses the barcode's default checksum behaviour
  • add - adds the necessary checksum to the message to be encoded
  • check - requires the check character to be present in the message.
  • Ignore - doesn't check nor add a checksum

checksum

Character

Yes

Yes

Display checksum

Enables or disables the use of the checksum in the human-readable message

displayChecksum

Boolean

Yes

Yes

Wide factor

Specifies the effective width of a bar with a given logical width

barcodeWideFactor

Character

Yes

Yes

Interchar gap

Specifies the width between encoded characters.

interCharGap

Character

Yes

Yes

Display Start Stop Character

Indicates whether the start and stop character will be displayed as part of the human-readable message

displayStartStop

Boolean

Yes

Yes



Datamatrix Properties

Property

Description

Name1

Type1

Get1

Set1

Shape

Can be set to either “square” or “rectangle

dataMatrixShape

Character

Yes

Yes



Postnet Properties

Property

Description

Name1

Type1

Get1

Set1

Checksum

Specifies the checksum mode. The value can be set as:



  • auto - chooses the barcode's default checksum behaviour
  • add - adds the necessary checksum to the message to be encoded
  • check - requires the check character to be present in the message.
  • Ignore - doesn't check nor add a checksum

checksum

Character

Yes

Yes

Display checksum

Enables or disables the use of the checksum in the human-readable message

displayChecksum

Boolean

Yes

Yes

Interchar gap

Specifies the width between encoded characters

interCharGap

Character

Yes

Yes

Baseline position

Specifies the position of the barcode baseline. This can be set to either:

  • top – top of the barcode
  • bottom – bottom of the barcode

baselinePosition

Character

Yes

Yes

Short bar height

Specifies the height of the short bar

shortBarHeight

Character

Yes

Yes

Quiet zone vertical

Specifies the vertical quiet zone

quietZoneVertical

Character

Yes

Yes



Interleaved Properties

Property

Description

Name1

Type1

Get1

Set1

Checksum

Specifies the checksum mode. The value can be set as:



  • auto - chooses the barcode's default checksum behaviour
  • add - adds the necessary checksum to the message to be encoded
  • check - requires the check character to be present in the message.
  • Ignore - doesn't check nor add a checksum

checksum

Character

Yes

Yes

Display checksum

Enables or disables the use of the checksum in the human-readable message

displayChecksum

Boolean

Yes

Yes

Wide factor

Specifies the effective width of a bar with a given logical width.

barcodeWideFactor

Character

Yes

Yes

Interchar gap

Specifies the width between encoded characters.

interCharGap

Character

Yes

Yes



EAN-8 Properties

Property

Description

Name1

Type1

Get1

Set1

Checksum

Specifies the checksum mode. The value can be set as:



  • auto - chooses the barcode's default checksum behaviour
  • add - adds the necessary checksum to the message to be encoded
  • check - requires the check character to be present in the message.
  • Ignore - doesn't check nor add a checksum

checksum

Character

Yes

Yes



EAN-13 Properties

Property

Description

Name1

Type1

Get1

Set1

Checksum

Specifies the checksum mode. The value can be set as:



  • auto - chooses the barcode's default checksum behaviour
  • add - adds the necessary checksum to the message to be encoded
  • check - requires the check character to be present in the message.
  • Ignore - doesn't check nor add a checksum

checksum

Character

Yes

Yes



EAN-128 Properties

Property

Description

Name1

Type1

Get1

Set1

Checksum

Specifies the checksum mode. The value can be set as:



  • auto - chooses the barcode's default checksum behaviour
  • add - adds the necessary checksum to the message to be encoded
  • check - requires the check character to be present in the message.
  • Ignore - doesn't check nor add a checksum

checksum

Character

Yes

Yes

Template

Specifies the message template with the fields for the EAN message

template

Character

Yes

Yes

Omit brackets

Indicates whether to omit the brackets from the human readable part of the barcode

omitBrackets

Boolean

Yes

Yes



UPC-A Properties

Property

Description

Name1

Type1

Get1

Set1

Checksum

Specifies the checksum mode. The value can be set as:



  • auto - chooses the barcode's default checksum behaviour
  • add - adds the necessary checksum to the message to be encoded
  • check - requires the check character to be present in the message.
  • Ignore - doesn't check nor add a checksum

checksum

Character

Yes

Yes



UPC-E Properties

Property

Description

Name1

Type1

Get1

Set1

Checksum

Specifies the checksum mode. The value can be set as:



  • auto - chooses the barcode's default checksum behaviour
  • add - adds the necessary checksum to the message to be encoded
  • check - requires the check character to be present in the message.
  • Ignore - doesn't check nor add a checksum

checksum

Character

Yes

Yes



Royal Mail Customer Barcode Properties

Property

Description

Name1

Type1

Get1

Set1

Checksum

Specifies the checksum mode. The value can be set as:



  • auto - chooses the barcode's default checksum behaviour
  • add - adds the necessary checksum to the message to be encoded
  • check - requires the check character to be present in the message.
  • Ignore - doesn't check nor add a checksum

checksum

Character

Yes

Yes

Interchar gap

Specifies the width between encoded characters.

interCharGap

Character

Yes

Yes

Track height

Specifies the height of the track

trackheight

Character

Yes

Yes

Ascender height

Specifies the height of the ascender/descender.

ascenderHeight

Character

Yes

Yes





USPS Intelligent Mail Properties

Property

Description

Name1

Type1

Get1

Set1

Checksum

Specifies the checksum mode. The value can be set as:



  • auto - chooses the barcode's default checksum behaviour
  • add - adds the necessary checksum to the message to be encoded
  • check - requires the check character to be present in the message.
  • Ignore - doesn't check nor add a checksum

checksum

Character

Yes

Yes

Interchar gap

Specifies the width between encoded characters.

interCharGap

Character

Yes

Yes

Track height

Specifies the height of the track

trackheight

Character

Yes

Yes

Ascender height

Specifies the height of the ascender/descender.

ascenderHeight

Character

Yes

Yes

Quiet zone vertical

Specifies the vertical quiet zone

quietZoneVertical

Character

Yes

Yes





PDF417 Properties

Property

Description

Name1

Type1

Get1

Set1

Max rows

Specifies the maximum number of rows

maxRows

Integer

Yes

Yes

Min rows

Specifies the minimum number of rows

minRows

Integer

Yes

Yes

Max columns

Specifies the maximum number of columns

maxCols

Integer

Yes

Yes

Min columns

Specifies the minimum number of columns

minCols

Integer

Yes

Yes

Width to height ratio

Specifies the ratio of the barcode width to the height

widthToHeightRatio

Character

Yes

Yes

Error correction level

Specifies the error correction level for the barcode.

errorCorrectionLevel

Integer

Yes

Yes







1 See accessing control properties from scripts



Examples of setting properties via API based language:



//set the barcode text

controls.MyBarcode.message.text = "123456788";

Preview of supported barcodes



Barcode

PNG Image

Codabar

Code 128

Code 39

Datamatrix (rectangle)

Datamatirx (square)

Postnet

Interleaved

EAN-8

EAN-13

EAN-128

UPC-A

UPC-E

Royal Mail Customer Barcode

USPS Intelligent Mail

PDF417





Right Click Menu Actions

Click here for right-click menu actions available to all controls.

There are no specific right click actions for this control.
