Fields Wizard

Documentation home

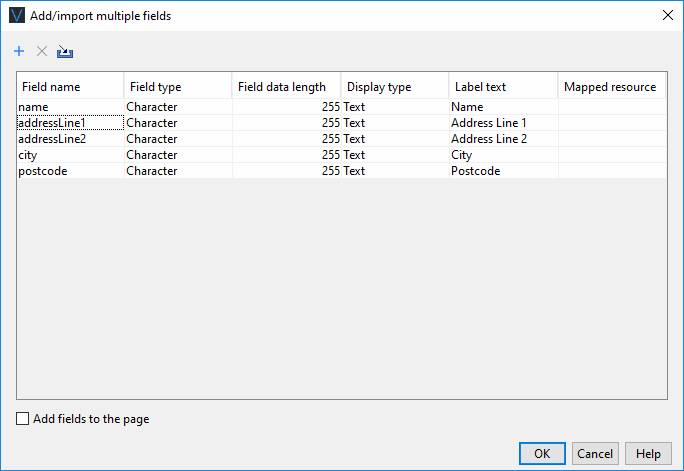

The Fields Wizard is available from the Fields View and WYSIWYG View panels by clicking on the fields wizard icon ( in Fields View, in the WYSIWYG View), or using shortcut key Alt Ctrl W when any of these views has the current focus. The Fields Wizard is used to add multiple fields and additionally, when invoked from the WYSIWYG View, to create Field Controls.

New fields can be added manually and/or can be imported from any external resource in the form’s Resources View. When fields are imported from an external resource a mapping is also created between the form field and the resource field of the same name and this is shown in the Mapped resource column.

Fields are added by clicking the icon or by using the keyboard up and down arrows. Fields are deleted by clicking the icon.

Clicking the icon shows the Import fields from external resource dialog. Mappings will be created for any fields selected from this dialog and these will be shown in the Mapped resource column.

Field name: enter a name for the new field

Field type: set the field type from the dropdown list

Field data length: the maximum length

Display type: set the display type from the dropdown list

Label text: the label text for the field

Mapped resource: indicates that a mapping between the field and the resource field of the same name in the named resource will be created. This is shown only when fields have been imported from a resource using the icon.
