Introduction

Web Resources are files that are normally loaded directly by the browser e.g. images, style sheets, Javascript etc. These files can be stored in two places:

In the workspace
In the web application file system on the server

In general, it’s better practice to keep all web resource files in the workspace where the advantages include built-in tools to edit and maintain the files and their relationships with other entities, inclusion within the deployment mechanism etc. If you keep web resource files on the server, you will need to copy these manually to any target server you deploy to.

Web Resource Files in the Workspace

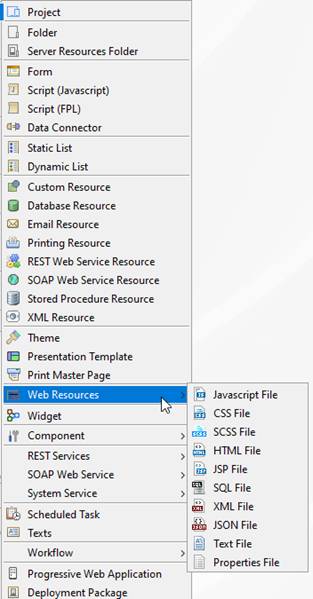

These files can be dragged from a file browser into the workspace or they can be copied/pasted into the workspace file system using a file browser. Some web resource file types are editable – this includes Javascript and Style Sheet files but excludes images – and files of these types can also be created in the designer by right clicking in the tree and selecting New > Web Resources > as shown in the following illustration:

Editing Web Resource Files in the Workspace

Existing web resource files can be opened in the usual way by double clicking the file name in the tree. You can also right click on the file name and select:

<Type> Editor: opens the file using the editor configured in the Web Content tab of Designer Preferences, this is the default editor
Text Editor: a basic text editor which is only available for textual file types
System Editor: opens the file using the default external program for the file type configured in the OS

The association between file types and editors is configured using the Web Content tab of Designer Preferences.

Using Web Resource Files in the Workspace

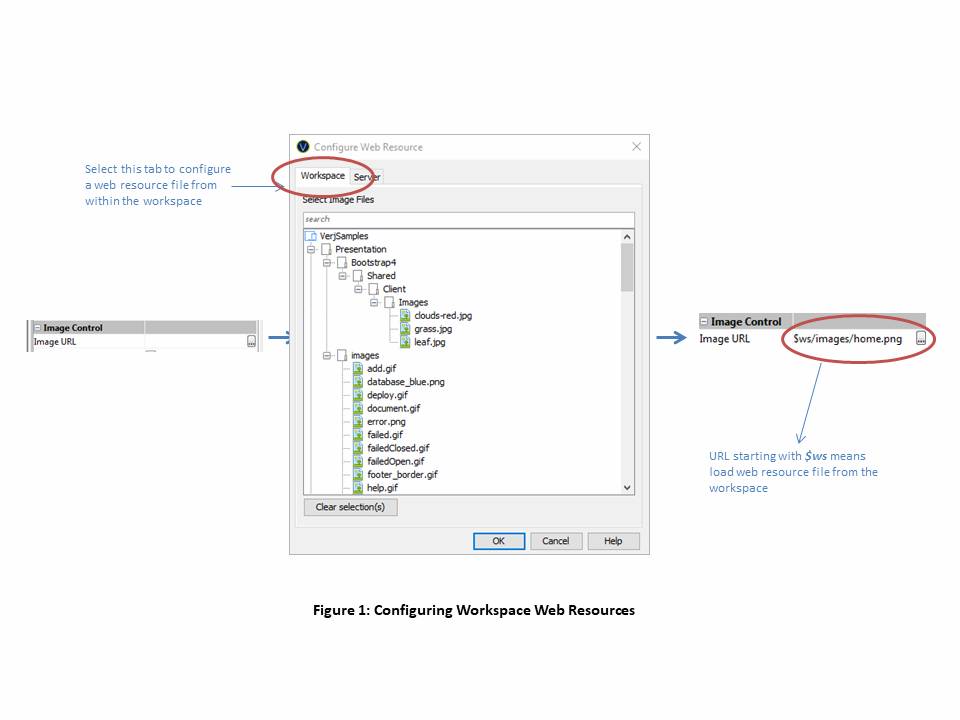

Wherever it is possible to refer to a web resource file e.g. configuring an image URL for an Image Control, the system shows the Web Resource Browser which allows you to configure a file from either the workspace or the application server. The example below is configuring an image URL for an Image Control. Within the Configure from workspace tab, you can select any image in any linked project:

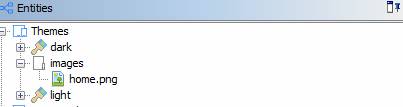

When a web resource file is selected from the workspace, the system assigns a URL beginning with $ws, e.g. in the example shown above the URL is $ws/images/home.png. The Ebase Xi system interprets this prefix as a request to load the file from the workspace. This technique can also be used when you need to refer to a web resource file from an object where the Web Resource Browser is not available. An example of this is configuring a background image in a Style Sheet e.g. the following CSS rule can be entered directly into a Style Sheet:

.cl1 { background-image: url($ws/Web_Content/images/home.png); }

Web Resource Files from the Server

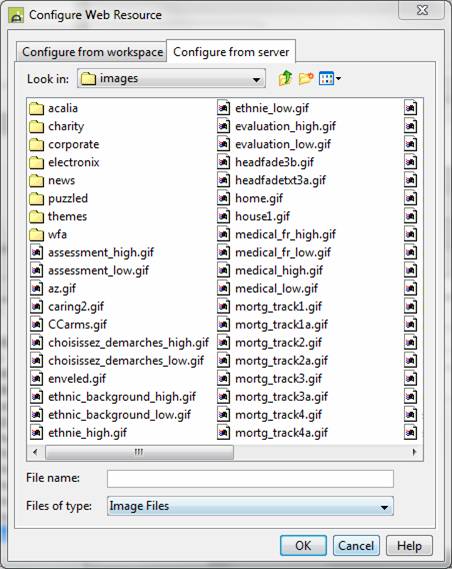

Wherever it is possible to refer to a web resource file, the system shows the Web Resource Browser which allows you to configure a file from either the workspace or the application server. The example below is configuring an image for an Image Control. Within the Configure from server tab, you can select an image by browsing within the web application’s file system:
